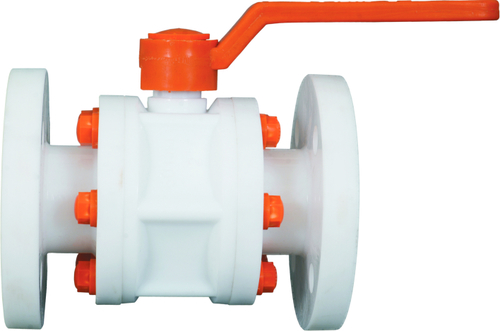

PP / HDPE BALL VALVE - Flange End

PP Ball Valve Flange End is a high-performance full bore valve designed for reliable flow control in chemical, water, and industrial piping systems. It features a single-piece construction with reinforced ball and PTFE seat for smooth operation and leak-proof sealing. The valve is available in PP, HDPE, Isotactic PP, and PVDF materials, with flange connections as per ANSI, BS, and DIN standards. Suitable for corrosive and high-purity applications, it offers excellent durability, chemical resistance, and easy maintenance. Sizes available from ½″ to 12″.

PP BALL VALVE - Screw End

PP Ball Valve Screw End is designed for reliable and leak-proof flow control in industrial and chemical piping systems. Manufactured in PP, ISOPP, and PVDF materials, it features PTFE seat rings, neoprene seals, and high-quality MS/SS stem and fasteners for long-lasting performance. The valve offers smooth operation with a coated handle and full bore design for efficient flow. Available in sizes from ½″ to 4″, with optional SS 316 parts and PVDF or glass-filled ball options on request.

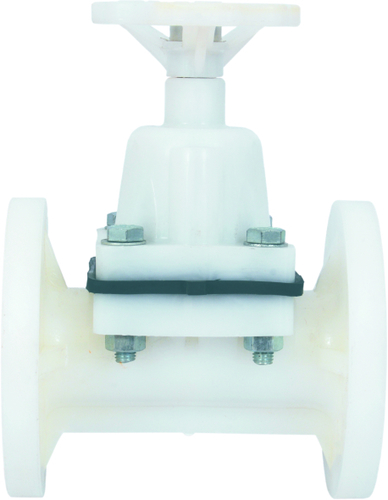

PP DIAPHRAGM VALVE - Flange End

PP Diaphragm Valve Flange End is a weir-type manual valve designed for accurate flow control and isolation in industrial piping systems. Manufactured from PP, ISOPP, and PVDF materials, it features a neoprene or PTFE-coated diaphragm for leak-proof sealing and long service life. The valve includes a glass-filled PP compressor, MS/SS stem, and PP hand wheel for smooth and reliable operation. Available in sizes from ½″ to 4″, with optional SS 316 parts and EPDM/Viton/PTFE-coated diaphragm options for demanding applications.

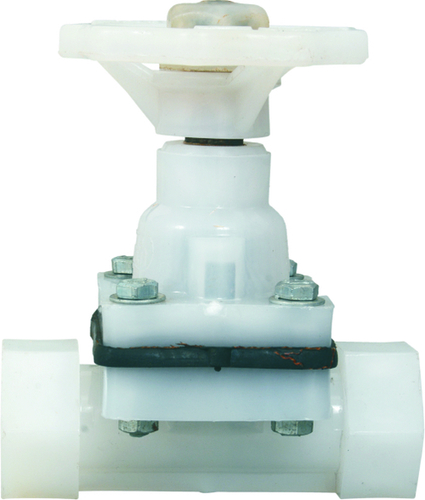

PP DIAPHRAGM VALVE - Screw End

PP Diaphragm Valve Screw End is a weir-type manual valve designed for precise flow control and isolation in industrial and chemical piping systems. Made from PP, ISOPP, and PVDF materials, it features a neoprene or PTFE-coated diaphragm for excellent sealing and long service life. The valve includes a glass-filled PP compressor, MS/SS stem, and PP hand wheel for smooth operation. It is suitable for working pressure up to 150 PSI and temperatures up to 80°C. Available in sizes ½″, ¾″, and 1″, with optional SS 316 parts and EPDM/Viton diaphragm options.

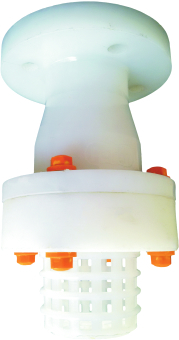

PP FOOT VALVE - Flange End

PP Foot Valve Flange End is designed for reliable filtration and backflow prevention in pumping and piping systems. It features a robust PP/ISOPP/PVDF top and bottom body, integrated screen, and reinforced coated ball for long-lasting performance. The neoprene seat ring ensures leak-proof sealing, while MS/SS fasteners provide mechanical strength. Available in sizes from 1″ to 8″, it is ideal for water, chemical, and industrial applications. Optional SS 316 parts and EPDM/Viton rubber seals are available on request.

PP FOOT VALVE - Screw End

PP Foot Valve Screw End is a ball-type, soft-seated valve designed for efficient filtration and backflow prevention in pumping systems. Manufactured in PP, ISOPP, and PVDF materials, it features a robust body, integrated screen, and neoprene seat ring for reliable sealing and long service life. The valve has BSP threaded screw end connections and is suitable for working pressure up to 150 PSI and temperature up to 80°C. Available in sizes from 1″ to 4″, with optional SS 316 parts and EPDM/Viton rubber options on request.

PP NON RETURN VALVE - Flange End

PP Non Return Valve Flange End is a ball-type, soft-seated valve designed to prevent backflow and ensure one-way flow in piping systems. Manufactured from PP, ISOPP, and PVDF materials, it features a reinforced coated ball and neoprene seat ring for reliable sealing and long service life. The valve has flanged end connections as per ANSI, BS, and DIN standards and is suitable for working pressure up to 150 PSI and temperatures up to 80°C. Available in sizes from 1″ to 8″, with optional SS 316 parts and EPDM/Viton seals on request.

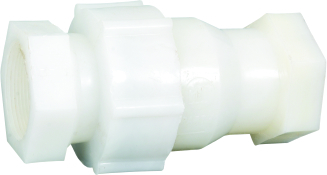

PP NON RETURN VALVE - Screw End

PP Non Return Valve Screw End is a ball-type, soft-seated valve designed to prevent backflow and ensure one-way fluid flow in piping systems. Manufactured in PP, ISOPP, and PVDF materials, it features a reinforced coated ball and neoprene seat ring for reliable sealing and long service life. The valve comes with BSP threaded screw end connections and is suitable for working pressure up to 150 PSI and temperatures up to 80°C. Available in sizes from 1″ to 4″, with optional SS 316 parts and EPDM/Viton rubber seals on request.

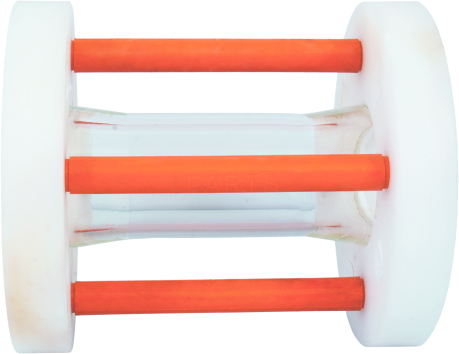

PP FLOW INDICATOR (FULL VIEW)

PP Sight Glass Indicator Flange End is designed for visual flow and level monitoring in industrial piping systems. It features a robust PP/ISOPP/PVDF side piece with high-quality borosilicate glass tube and PTFE crescent ring for excellent chemical resistance and durability. The unit is assembled with MS/SS studs, nuts, and washers for secure installation. Suitable for working pressure up to 150 PSI and temperature up to 80°C, it is ideal for chemical, water, and process industries. Available in sizes from 1″ to 6″, with optional SS 316 parts and PVDF/PP-H material options on request.

PP FLOW INDICATOR

PP Flow Indicator is designed for visual monitoring of fluid flow in industrial piping systems. It features a robust PP/ISOPP/PVDF body with a borosilicate glass tube and PTFE crescent ring for excellent chemical resistance and durability. The indicator is suitable for working pressure up to 150 PSI and temperatures up to 80°C. Available in sizes from 1″ to 6″, with optional SS 316 parts and custom glass length options for various industrial applications.

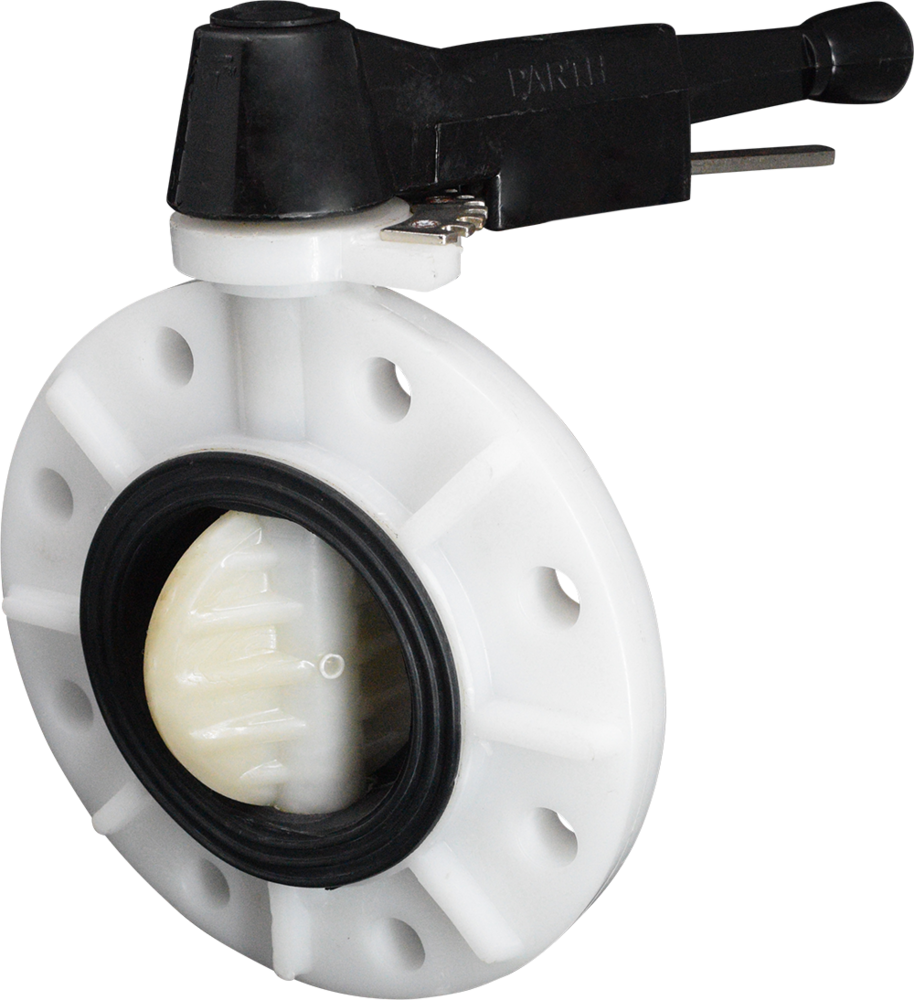

PP BUTTERFLY VALVE - Flange End

PP Butterfly Valve Flange End is designed for efficient flow regulation and isolation in industrial piping systems. It features a single-piece PP/ISOPP/PVDF body with a durable PP disc and high-quality neoprene/EPDM/Viton seat for reliable sealing. The valve is equipped with a sturdy PP/ABS lever and EN8/SS 316 stem for smooth manual operation. Suitable for working pressure up to 150 PSI and temperatures up to 80°C, it comes with flanged end connections as per ASA 150 standards. Available in sizes from 2″ to 10″, with optional SS 316 parts and PVDF/PP-H material options on request.

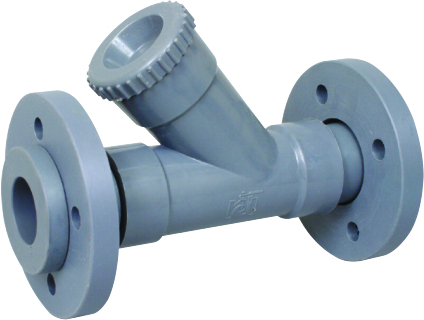

PP ‘Y’ TYPE STRAINER - Flange End

PP ‘Y’ Type Strainer Flange End is designed to remove solid particles and debris from fluid pipelines, protecting pumps and valves from damage. It features a durable PP/ISOPP/PVDF body with interchangeable nylon cloth or PP molded screen options (20 to 120 mesh) for effective filtration. The strainer includes a PP cover and neoprene gasket for leak-proof sealing. Suitable for working pressure up to 150 PSI and temperatures up to 80°C, it is available in sizes from ½″ to 4″, with optional EPDM/Viton gaskets and PVDF/PP-H material options on request.

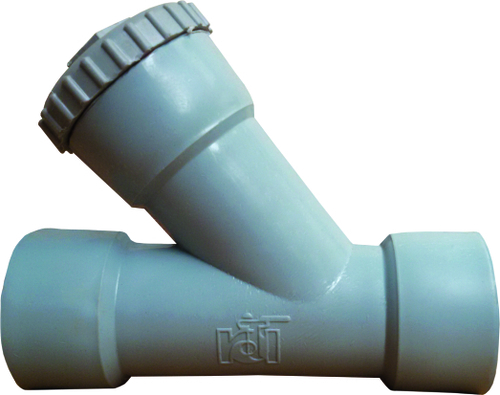

PP ’Y’ TYPE STRAINER - Screw End

PP ‘Y’ Type Strainer Screw End is designed to filter and remove solid particles from fluid pipelines, protecting pumps, valves, and other equipment. It features a robust PP/ISOPP/PVDF body with an 80 mesh PP screen and neoprene gasket for reliable sealing. The strainer comes with BSP threaded screw end connections and is suitable for working pressure up to 150 PSI and temperatures up to 80°C. Available in sizes from ½″ to 2″, with optional nylon cloth or SS screens (20 to 120 mesh) and EPDM/Viton gasket options on request.
