PP Basket Strainers / Priming Pot Chamber

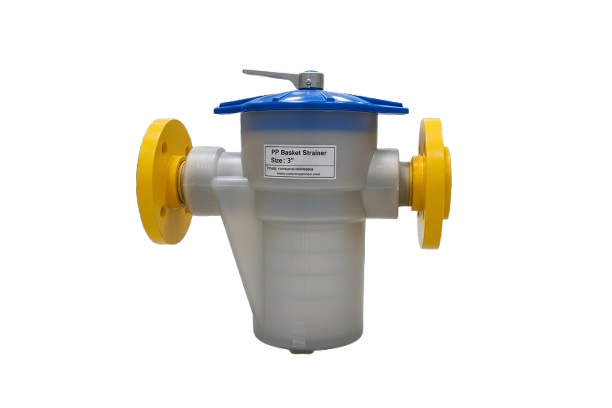

PP Basket Strainers
PP Basket Strainers
| Material | PP |
| Hydraulically Tested | 5 kg/cm² |
| Dia | 3/4″, 1″, 1½”, 2″, 3″, 4″, 6″, 8″, 10″ |
Moulded Basket Strainers
Manufacturer and Suppliers of Moulded Basket Strainer in PP.
Specifications
Moulded Basket Strainer in PP in many corrosive or sensitive process media straining applications, plastic is the preferred material of construction for a basket strainer. Moulded basket strainers are resistant to wide variety of corrosive acids and other aggressive materials. They will work in applications that may require a much more expensive exotic alloy. Their plastic constructions ensure that they will not contaminate sensitive process media such as photographic chemicals and de-ionized water.
Features- Available in screwed as well as flanged connection.
- Hydraulically tested to 5 kg/cm.
- Excellent corrosion resistance.
- No process media contamination.
- Hand removable cover till size 4" (100 mm).
- In Line design.
- Optional threaded drain.
- No painting or coating required.
3/4", 1", 1½", 2", 3", 4", 6", 8", 10"
Standard Dimension| Size | A +-5 | B | C +-3 | D +-3 |
|---|---|---|---|---|
| 20 | 240 | 90 | 80 | 130 |
| 25 | 263 | 90 | 70 | 135 |
| 40 | 365 | 138 | 108 | 203 |
| 50 | 357 | 138 | 108 | 200 |
| 80 | 525 | 175 | 150 | 266 |
| 100 | 515 | 175 | 150 | 260 |
| 150 | 500 | 230 | 200 | 550 |
| Sr. No | Part Name | M.O.C |
|---|---|---|
| 1 | Body | Polypropylene |
| 2 | Cap / Cover | Polypropylene |
| 3 | ‘O’ Ring | Neoprene |
| 4 | Flange | Polypropylene |
| 5 | Basket / Filter | Polypropylene |
| 6 | Stubend | Polypropylene |

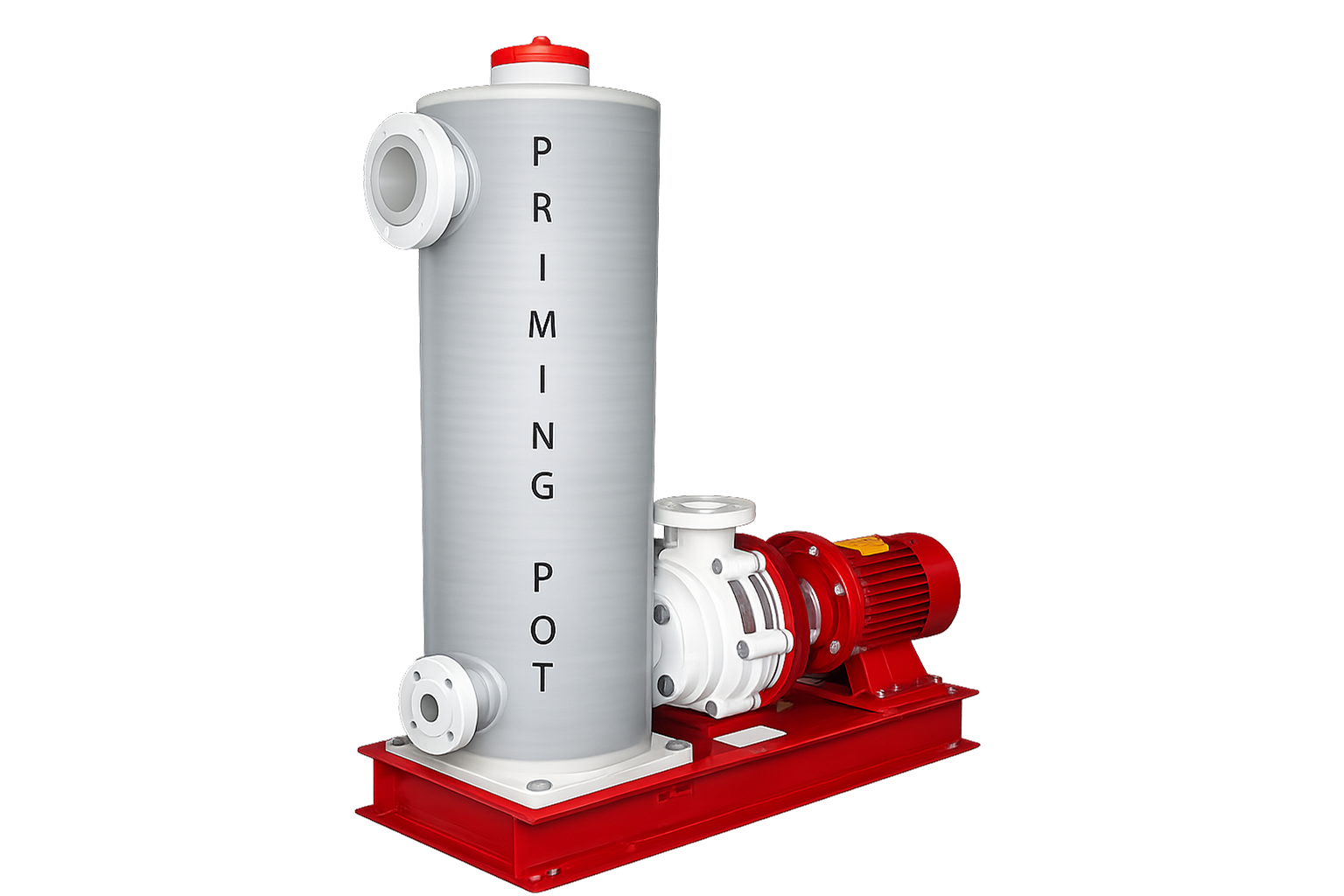

Priming Pot Chamber
Priming Pot Chamber
| Material | Polypropylene (PP) |
| Hydraulically Tested | 5 kg/cm² |
| Dia | 3/4″, 1″, 1½″, 2″, 3″, 4″, 6″, 8″, 10″ |
Priming Pot Chamber
Manufacturer and Suppliers of Priming Pot Chamber in PP.
Specifications
Priming Pot Chambers are used in pump suction lines to ensure quick and reliable priming of centrifugal pumps. These chambers maintain a reserve of liquid, preventing air locking and dry running of pumps. Manufactured from high-quality Polypropylene (PP), they offer excellent resistance to corrosion and aggressive chemicals, making them suitable for industrial, chemical, and water treatment applications.
Features- Ensures quick and efficient pump priming.
- Manufactured in corrosion-resistant Polypropylene (PP).
- Suitable for chemical, water, and industrial applications.
- Available with flanged or screwed connections.
- Leak-proof construction.
- Low maintenance and long service life.
- Prevents pump cavitation and dry running.
- Optional drain and vent connections.
1", 1½", 2", 3", 4", 6", 8", 10"
Material Specification| Sr. No | Part Name | M.O.C |
|---|---|---|
| 1 | Body | Polypropylene |
| 2 | Top Cover | Polypropylene |
| 3 | ‘O’ Ring | Neoprene / EPDM |
| 4 | Flange | Polypropylene |
| 5 | Drain Plug | Polypropylene |
